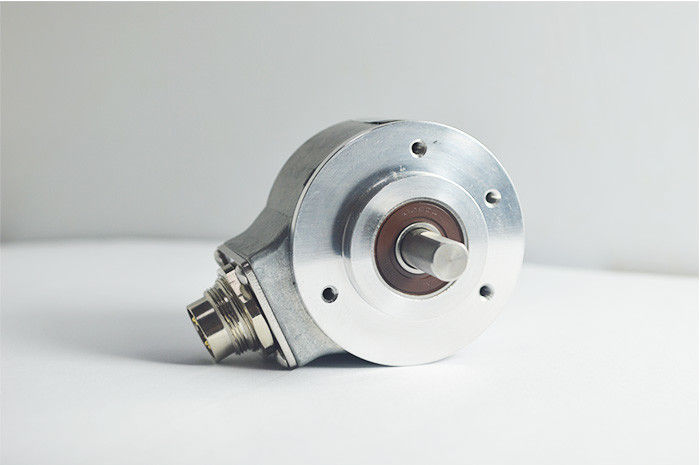

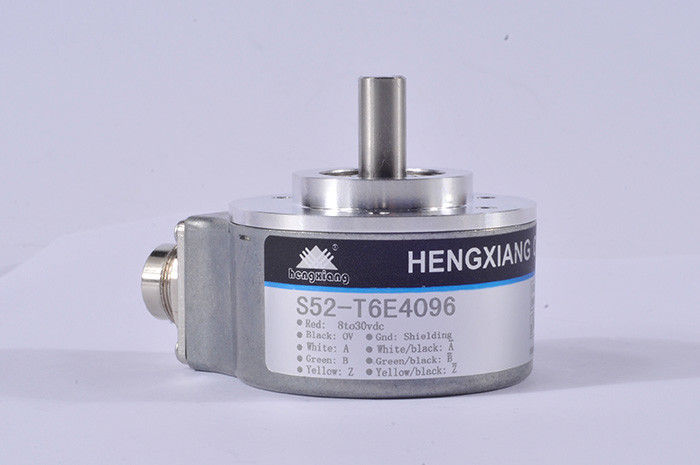

ABZUVW Signal Servo Motor Encoder , S52 Optical Motor Shaft Encoders 5000 Resolution

ABZUVW Signal Servo Motor Encoder , S52 Optical Motor Shaft Encoders 5000 Resolution

  • ABZUVW Signal Servo Motor Encoder , S52 Optical Motor Shaft Encoders 5000 Resolution
  • ABZUVW Signal Servo Motor Encoder , S52 Optical Motor Shaft Encoders 5000 Resolution
ABZUVW Signal Servo Motor Encoder , S52 Optical Motor Shaft Encoders 5000 Resolution
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S52 servo motor rotary encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Product Name: Servo Motor Rotary Encoder
Top REV: 3000RPM ; IP65≤2000r Rpm Solid Shaft diameter: 8mm(D Shape)
Shell Material: Die Cast Aluminum Shaft Material: Stainless Steel
Shaft Load: Radial 50N; Axial 30N Net weight : About 300g (with Package)
High Light:

dc motor shaft encoder

,

cnc rotary encoder

ABZUVW signal servo motor rotary encoder S52 solid shaft 8mm 5000 resolution radial socket



Quick reviews of S52 Encoder

Brand: HENGXIANG

External diameter: 51mm

Thickness: 29mm

Installation dimension: diameter 40mm

Bearing life: 1.5x109 revs at rated load(100000hrs at 2500RPM)

Shaft Material: Stainless steel

Cable length: 1000mm(cable with shielding)



Part Number of S52 Series encoder

S52-T12C4096/6

S52-Q12E2048/8

S52-TE12L1024/6

S52-T12S1000/8

S52-Q12C8192/8

S52-TE12E4096/6

S52-T12C1000/6

S52-Q12S8192/4

S52-TE12L4096/4



S52 Series encoder Characteristics

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 29mm
Installation dimension diameter 40mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000;11520;16384;20000;23040
  1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
  2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
Socket out from back
Cable out from back with socket
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%



Questions you may like to know before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.
